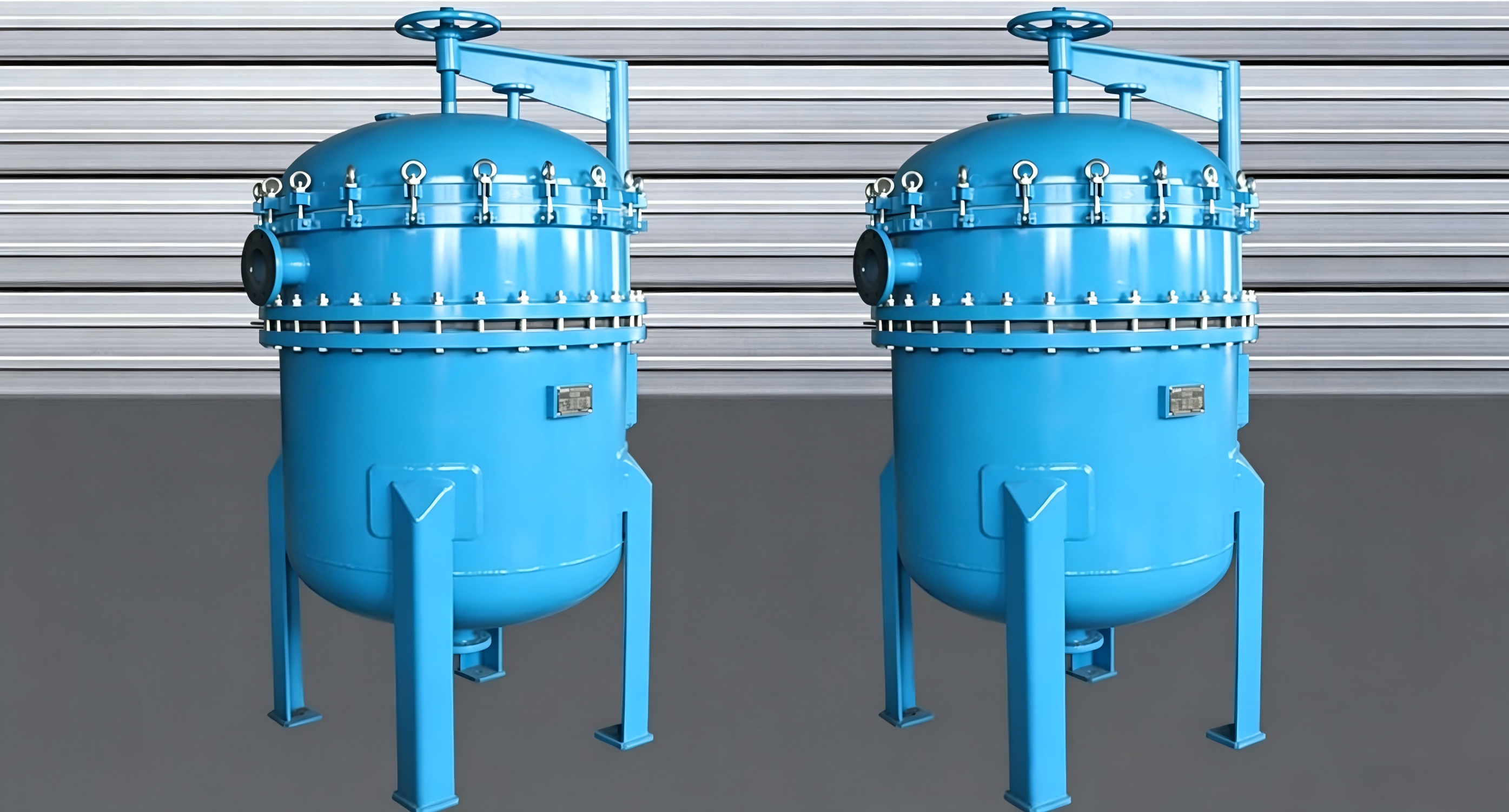

Fluorine Lined Precision Filter

The fluorine lined precision filter is composed of connecting pipe, cylinder, filter basket, flange, flange cover and fasteners. Installed on pipelines, it removes solid impurities from corrosive fluid to ensure stable operation of compressors, pumps and instruments, stabilizing production processes and ensuring operational safety.

We adopt customized lining materials and processes to provide optimal filtration solutions for diverse media and working conditions.

Working Principle

Fluid flows through the cylinder into the filter basket, where solid particles are intercepted. Purified fluid flows out from the filter outlet. To clean, unscrew the bottom plug to drain residual fluid, remove the flange cover, clean internal components and reassemble. The equipment features simple operation and easy maintenance.

It boasts compact structure, high filtration capacity, low pressure drop and wide application range. It is applicable to corrosive chemicals including caustic soda, soda ash, concentrated and dilute sulfuric acid, carbonic acid, acetic acid and aldehyde acid.

Features & Advantages

Applicable media: Acids, alkalis, organic solvents and various corrosive media

Working pressure: -0.098MPa ~ +2.5MPa

Working temperature: -100℃ ~ +180℃

Manufacturing Standards：GB150-2011, HG/T21637-1991, ASME, HG/T 4088-2009

Filter types: Bag filter, cartridge filter

Filtration precision: 0.1μm ~ 50μm (300 mesh ~ 12500 mesh)

Performance advantages: High purity with extremely low precipitation, meeting purity requirements of photovoltaic industry.

Effective barrier against penetration of oxygen, carbon dioxide, chlorine, hydrogen chloride and other small molecular gases.

Ultra-smooth surface with low friction coefficient.

Service life: More than 10 years under normal working conditions, no obvious lining deterioration.

Lining Materials

Shell: Carbon steel, 304/316L stainless steel, titanium alloy, 2205 duplex stainless steel

Lining material: PO, PTFE, ETFE, PFA

Sealing gasket: PTFE, PTFE encapsulated rubber, fluororubber

Fastener: Galvanized bolt, stainless steel bolt, fluorine-lined bolt
