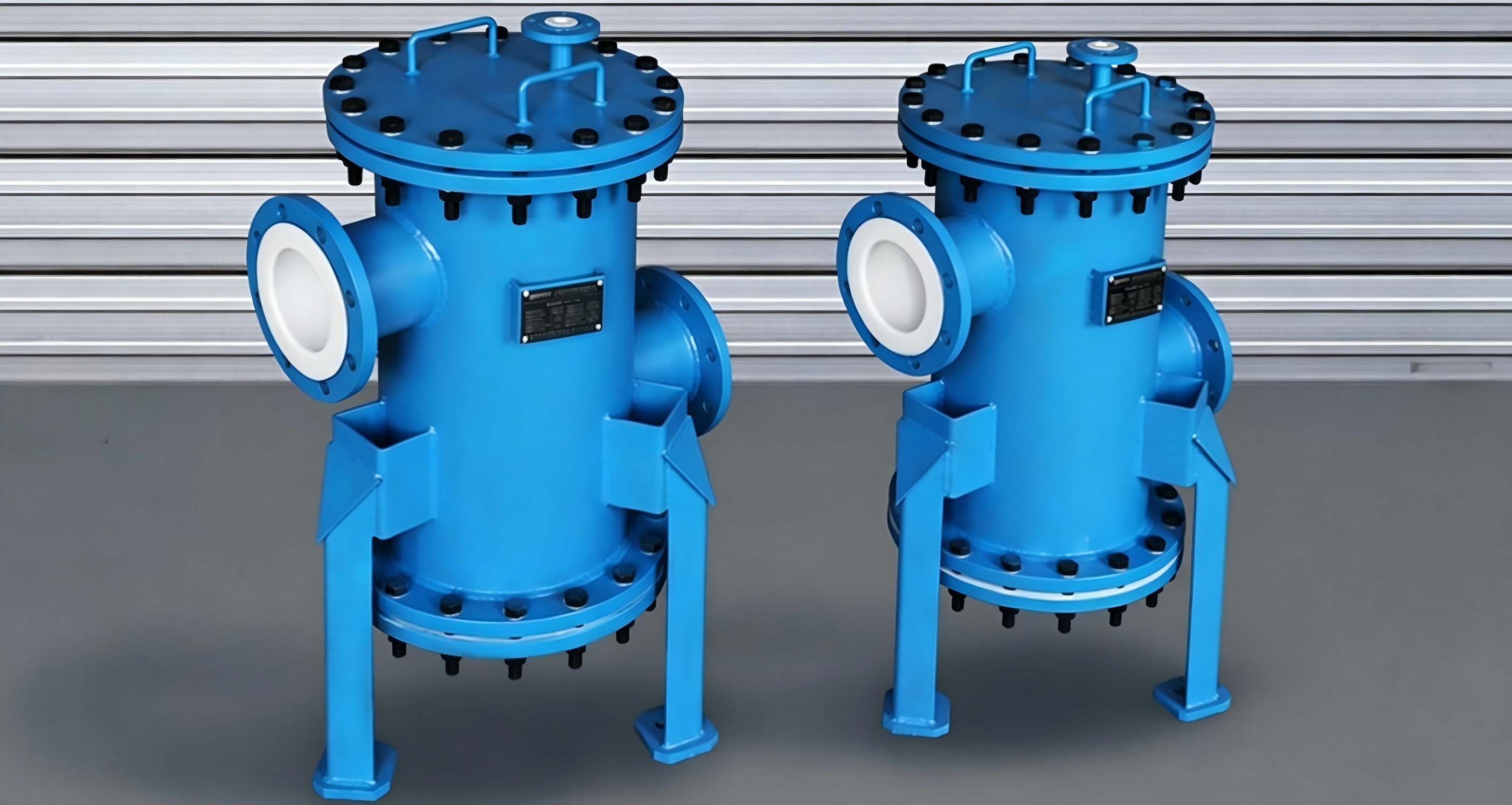

Fluorine Lined Pipeline Strainer

The fluorine lined pipeline strainer consists of connecting pipe, cylinder, filter basket, flange, flange cover and fasteners. Installed on pipelines, it removes large solid impurities from corrosive fluid to ensure normal operation of pumps, compressors and instruments, stabilize technological process and guarantee safe production.

We select matched lining materials and technologies based on diverse media and working conditions to deliver optimal filtration solutions.

Working Principle

Fluid flows into the filter basket inside the cylinder, solid contaminants are trapped while purified fluid discharges from the outlet. For cleaning, unscrew the bottom plug to drain fluid, detach the flange cover, clean the basket and reassemble. Easy operation and maintenance.

It features compact structure, high filtration capacity, low pressure loss and wide applicability. Suitable for corrosive chemicals including caustic soda, soda ash, concentrated & dilute sulfuric acid, carbonic acid, acetic acid and aldehyde acid.

Features & Advantages

Applicable media: Acids, alkalis, organic solvents and various corrosive media

Working pressure: -0.098MPa ~ +2.5MPa

Working temperature: -100℃ ~ +180℃

Manufacturing Standards：GB150-2011, HG/T21637-1991, ASME, HG/T 4088-2009

Types: Y-type, T-type, basket type, duplex strainer

Filtration precision: 50μm ~ 5000μm (10 mesh ~ 300 mesh)

Performance merits: High purity with ultra-low precipitation, compliant with photovoltaic industry requirements.

Resists penetration of oxygen, carbon dioxide, chlorine, hydrogen chloride and other small molecular gases.

Ultra-smooth surface with low friction coefficient.

Service life: Over 10 years under normal service, no obvious lining deterioration.

Lining Materials

Shell: Carbon steel, 304/316L stainless steel, titanium alloy, 2205 duplex stainless steel

Lining material: PO, PTFE, ETFE, PFA

Sealing gasket: PTFE, PTFE encapsulated rubber

Fastener: Galvanized bolt, stainless steel bolt, fluorine-lined bolt
