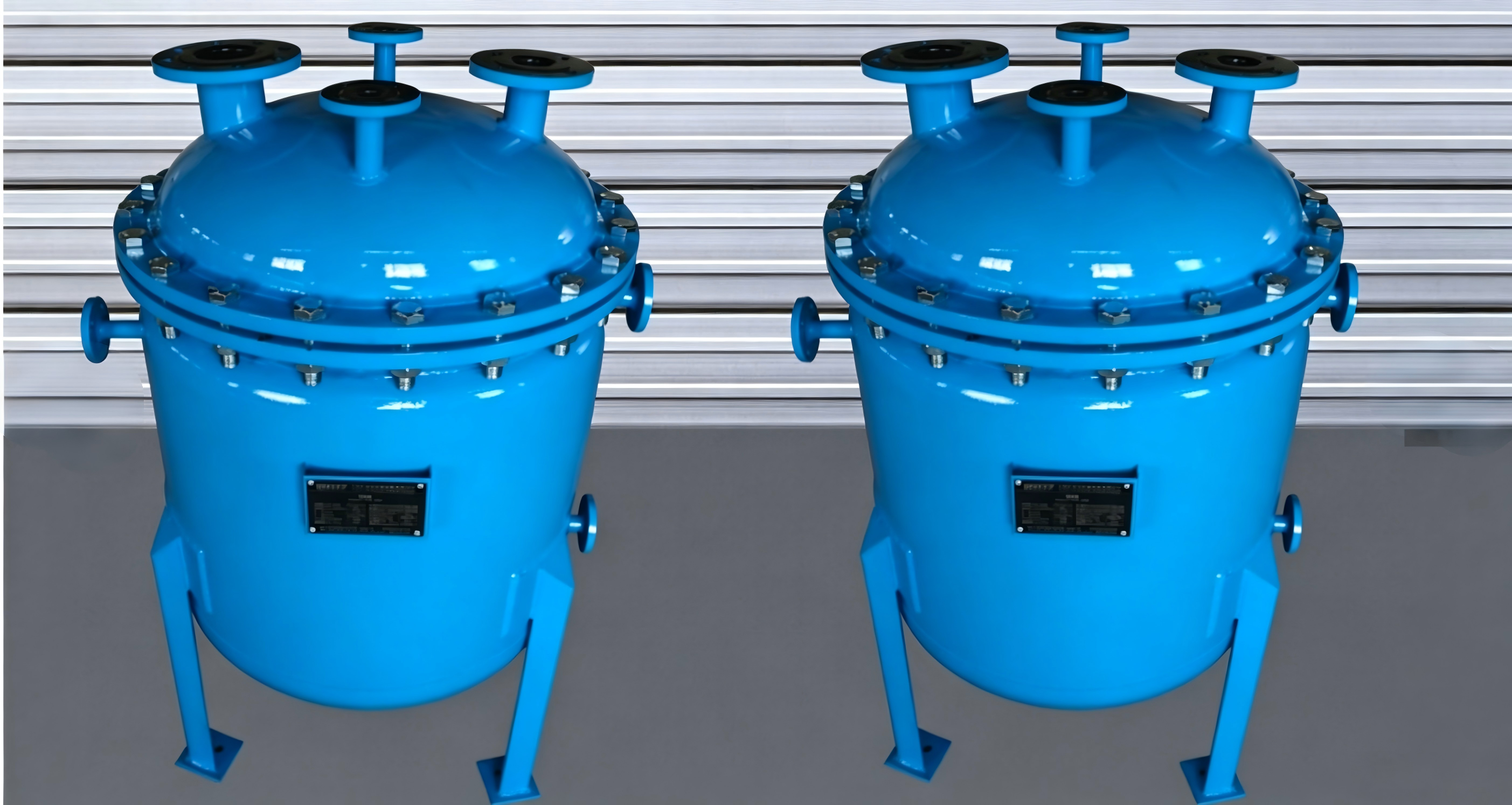

Fluorine-lined metering tank

Fluorine-lined metering tank belongs to storage tank category, dedicated to accurate material metering and regulation. Fitted with level gauges, ultrasonic detectors and pressure meters, it calculates material capacity via liquid level variation monitoring. It automatically controls pumps, valves and other inlet/outlet fittings to manage material delivery between bulk storage tanks.

Working Principle of Fluorine Lined Metering Tank

Prior to lining spraying, the steel shell surface shall be processed. Remove burrs and impurities, eliminate oil contaminants at high temperature, and conduct sand blasting to Sa2 cleanliness grade.

Special primer is sprayed first. Fluorine powder is electrostatically charged and evenly adsorbed on the equipment surface under electric field force, then baked at high temperature to form a dense protective layer. Repeated spraying and baking are performed to reach the specified coating thickness.

Features & Advantages

Applicable media: Acids, alkalis, organic solvents and all corrosive media, pH range 1-14

Working pressure: -0.098MPa ~ +2.5MPaWorking temperature: -100℃ ~ +200℃

Manufacturing Standards：GB150-2011, HG/T20678-2000, ASMEHG/T 4112-2009, HG/T 4088-2009

Tank types: Vertical tank, horizontal tank

Performance merits: High purity with extremely low precipitation, meeting purity requirements of photovoltaic industry.

Strong coating adhesion, resistant to extreme negative pressure and vacuum condition.

High heat transfer efficiency, ideal for heat preservation tanks.

Ultra-smooth surface with low friction coefficient.

Structural merits: Suitable for regular and complex special-shaped structures.

Service life: Over 10 years under normal operating conditions with no obvious lining deterioration.

Lining Tank Materials

Tank shell: Carbon steel, 304 stainless steel, 316L stainless steel, titanium alloy, 2205 duplex stainless steel

Lining material: ECTFE(F30), ETFE(F40), FEP, PFA

Sealing gasket: PTFE, PTFE wrapped rubber

Fastener: Galvanized bolt, stainless steel bolt, fluorine lined bolt

Tank Accessories

Pressure balance unit: Nitrogen sealing device, breather valve, flame arrester

Material inlet & outlet: Fluorine lined ball valve, electric/pneumatic fluorine lined ball valve, diaphragm pump

Metering device: PP metering pump, PVDF metering pump

Observation device: Fluorine lined sight glass, fluorine lined liquid level gauge
