Rotational Lining PTFE Storage Tank

Adopting advanced thermal rotational technology and imported high-performance raw materials, the tank realizes thermal fusion between plastic and steel substrate with tailored formula and lining thickness as required. It features firm integrated bonding, synchronous expansion and contraction and excellent anti-delamination performance. The seamless lining is free of bubbles and pinholes, boasting high impact resistance, superior permeability resistance, enamel-like smooth surface, low friction coefficient and good anti-scaling property.

We customize lining materials and processes according to media and working conditions to provide optimal solutions.

Working Principle

This is a rotational sintering forming technology supported by automated processing equipment. Our independently developed dual-axis rotational molding process keeps the workpiece rotating along two axes simultaneously. The integral one-piece forming avoids cracking and leakage. Strong adhesion prevents lining collapse and peeling under negative pressure.

Features & Advantages

Applicable media: Acids, alkalis, organic solvents and corrosive substances, pH range 1-14

Working pressure: -0.098MPa ~ +2.5MPa

Working temperature: -100℃ ~ +200℃

Manufacturing Standards：GB150-2011,

 HG/T20678-2000,

 ASMEHG/T 4112-2009,

HG/T 4088-2009

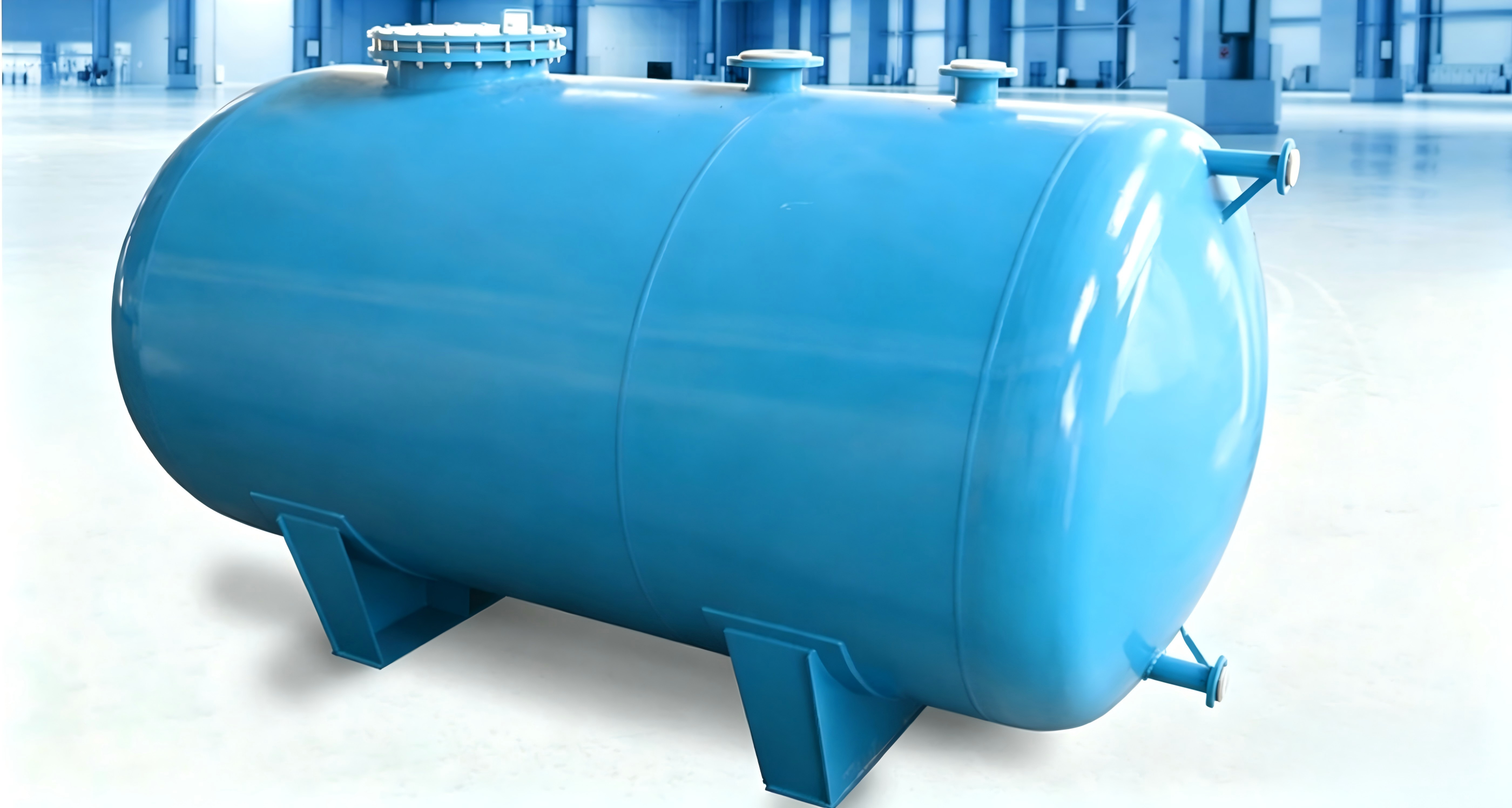

Tank types: Vertical tank, horizontal tank, transport tank

Performance advantages: High purity with low precipitation, meeting photovoltaic industry purity standards.

Effective barrier against penetration of oxygen, carbon dioxide, chlorine, hydrogen chloride and other small molecular gases.

Ultra-smooth surface with low friction coefficient.

Structural advantages: Construction accessible via manhole only, no large barrel flange needed.

Service life: Over 10 years under normal operation, no obvious lining deterioration.

Lining Materials

Tank shell: Carbon steel, 304/316L stainless steel, titanium alloy, 2205 duplex stainless steel

Lining material: PE, PO, ETFE, PFA

Sealing gasket: PTFE, PTFE wrapped rubber

Fastener: Galvanized bolt, stainless steel bolt, fluorine-lined bolt

Tank Accessories

Pressure balance unit: Nitrogen sealing device, breather valve, flame arrester

Material inlet & outlet: Fluorine-lined ball valve, electric/pneumatic fluorine-lined ball valve, diaphragm pump

Metering device: PP metering pump, PVDF metering pump

Observation device: Fluorine-lined sight glass, fluorine-lined liquid level gauge
