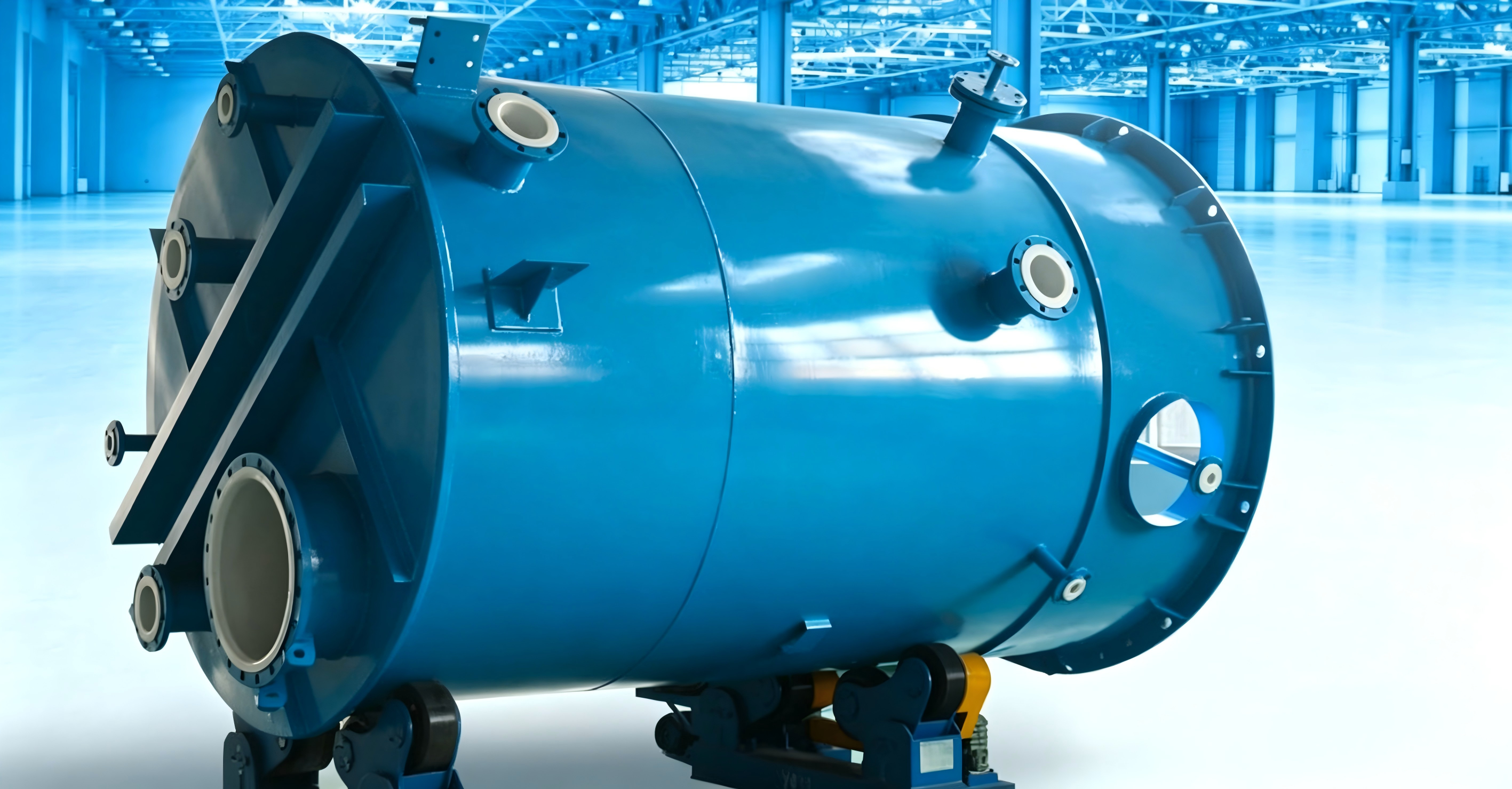

PTFE Sheet Lined Storage Tank

PTFE sheet lined storage tanks are used to store liquid and gaseous chemicals such as acids, alkalis and organic solvents. The inner steel shell is lined with PTFE sheets to prevent corrosion and greatly extend service life.

We select optimal lining materials and technologies based on diverse media and working conditions to deliver tailored solutions.

Working Principle

According to actual service conditions, PTFE sheets with suitable specifications and thickness are bonded to steel substrates for anti-corrosion protection.Procedures: The steel base is sandblasted to Sa2 grade and thoroughly cleaned, then coated with adhesive. Pre-activated or glass fiber reinforced PTFE sheets are also applied with adhesive, and firmly bonded onto steel surfaces via proprietary vacuum lining technology.

Widely adopted in chemical storage, all lining and auxiliary materials are sourced from professional overseas suppliers. Featuring advanced craftsmanship and reliable quality, the tanks meet strict requirements on purity, temperature resistance and corrosion resistance, free from manufacturing equipment limitations. They boast excellent permeability resistance, smooth surface, low friction coefficient, anti-scaling performance and long service lifespan.

Features & Advantages

Applicable media: Acids, alkalis, organic solvents and various corrosive substances

Working pressure: -0.098MPa ~ +2.5MPa

Working temperature: -100℃ ~ +180℃

Manufacturing Standards:GB150-2011,

HG/T20678-2000,

ASMEHG/T 4112-2009,

HG/T 4088-2009

Tank types: Vertical, horizontal and underground tanks

Performance strengths: High purity with minimal precipitation, compliant with photovoltaic industry purity standards.

Good resistance against penetration of small molecular gases including oxygen, carbon dioxide, chlorine and hydrogen chloride.

Ultra-smooth surface with low friction coefficient.

Structural strengths: Construction accessible only through manhole, no large barrel flange required.

Service life: More than 10 years under normal operation, no obvious lining aging after long-term use.

Lining Tank Materials

Tank shell: Carbon steel, 304/316L stainless steel, titanium alloy, 2205 duplex stainless steel

Lining sheets: PP, PTFE, PVDF, PFA

Sealing gaskets: PTFE, PTFE encapsulated rubber

Fasteners: Galvanized bolts, stainless steel bolts, fluorine-lined bolts

Tank Accessories

Pressure balance parts: Nitrogen sealing device, breather valve, flame arrester

Material inlet & outlet parts: Fluorine-lined ball valve, electric/pneumatic fluorine-lined ball valve, diaphragm pump

Metering equipment: PP metering pump, PVDF metering pump

Observation equipment: Fluorine-lined sight glass, fluorine-lined level gauge
