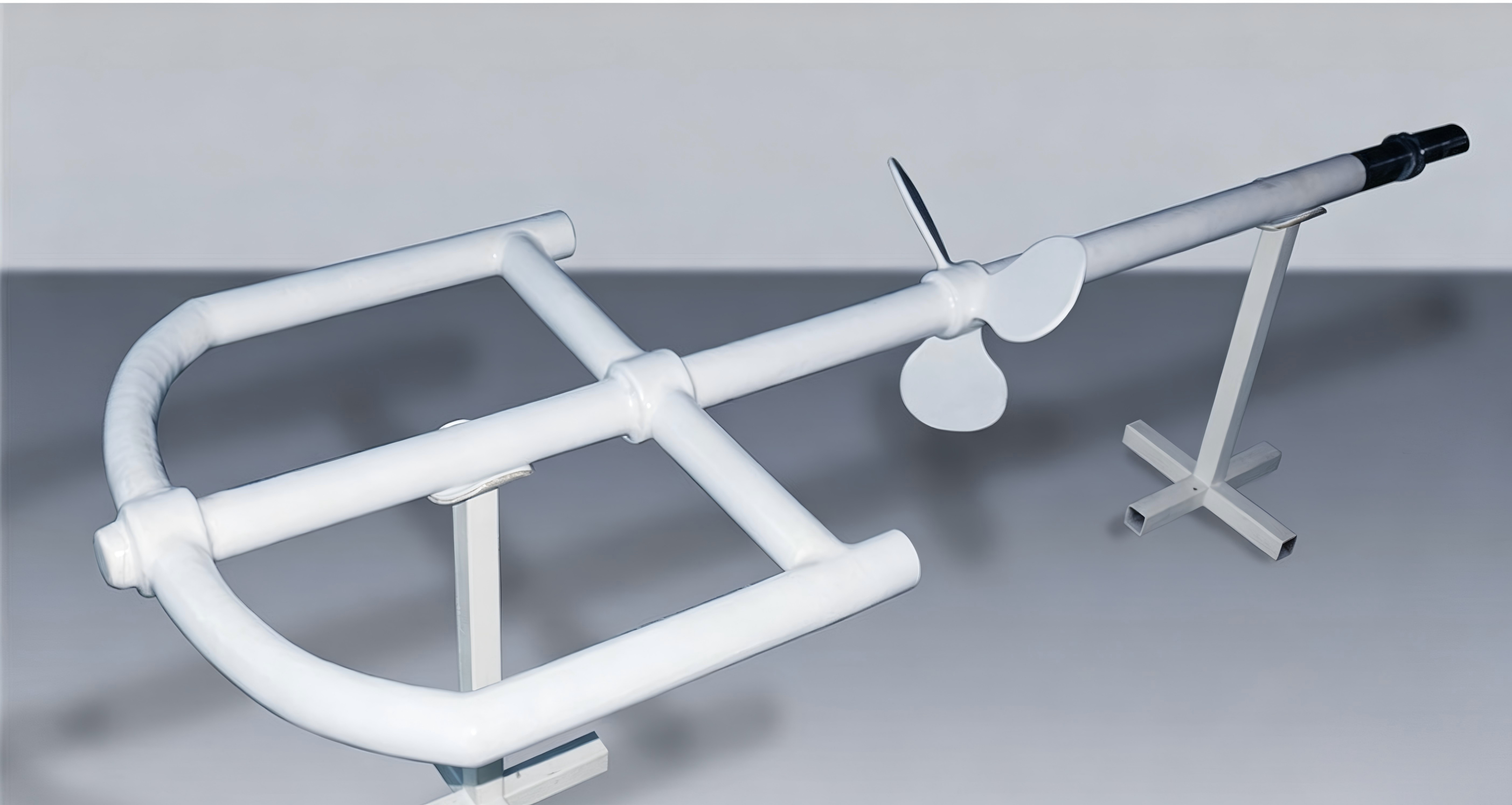

Sprayed PTFE Agitator

The sprayed PTFE agitator mainly consists of motor, reducer, water jacket, sealing cylinder, support body, outer magnetic rotor, inner magnetic rotor, upper and lower stirring shafts, impellers and control cabinet.

The motor and reducer are mounted on top of the water jacket. The outer magnetic rotor is driven by the rotating assembly, while the inner magnetic rotor is installed on the support shaft and enclosed inside the sealing cylinder. The upper and lower shafts are connected via coupling. The motor drives the outer magnetic rotor to rotate, which transmits torque through magnetic coupling to turn the inner magnetic rotor and stirring shaft for material mixing. The sealing cylinder is tightly fixed to the reactor with metal graphite gaskets and bolts. This design converts dynamic seal between shaft and tank into static seal, achieving zero leakage under high temperature and high pressure.

1.Wide coverage and versatile applicationDiversified products suit solid-solid, liquid-liquid, solid-liquid and gas-liquid mixing conditions. Top-mounted, side-mounted and bottom-mounted installation styles are available. Hundreds of impeller types are optional, including propeller, turbine, frame, anchor, ribbon, screw and combined ribbon-screw styles. Maximum agitator length exceeds 12 meters and stirring diameter reaches over 5 meters. Surface coating and body materials such as carbon steel, stainless steel and titanium are selectable.

2.Mature R&D and full-set solution supplyWith over ten years of technical experience, the professional team provides customized schemes through professional blade selection and stirring flow simulation calculation.

3.Strict material selection with five quality guaranteesLong-term cooperation with reputable material suppliers. Raw materials are sourced from large domestic steel manufacturers and inspected in accordance with five internal material quality standards for stable performance.

4.Advanced processing equipment and craftsmanshipAdopts high-precision laser cutting and CNC automatic machining. All procedures including pressing, welding and assembly are finished in-house.

5.Eight exclusive quality inspection criteriaStrict eight-item production inspection standards are implemented to ensure qualified products and high yield rate.

6.Fast deliverySelf-contained production and standardized process control effectively shorten manufacturing cycle to meet customer demands.

7.Rich experience in non-standard customizationCustom solutions for diverse working scenarios are available. Numerous process combinations and customized designs satisfy all-round product requirements.
