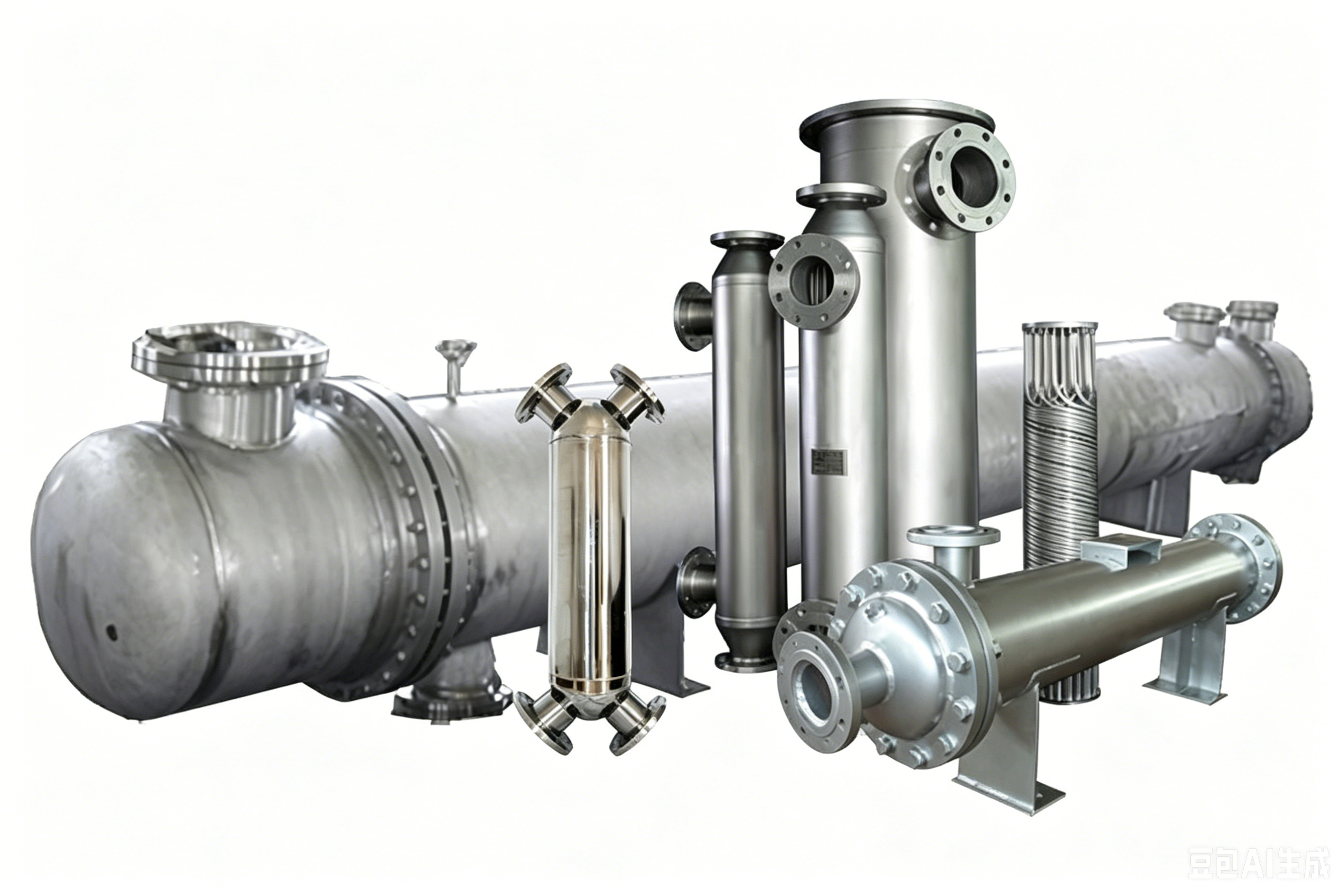

Shell and Tube Heat Exchanger

Product Overview

A Shell and Tube Heat Exchanger is a robust, high-efficiency industrial heat transfer device designed to transfer thermal energy between two fluids at different temperatures. It consists of a large cylindrical pressure vessel (the shell) containing a bundle of small-diameter tubes. One fluid flows through the tubes, while the other flows over the tubes inside the shell, enabling efficient heat exchange through the tube walls.

Widely used across industries for heating, cooling, condensation, and evaporation processes, these exchangers are built to withstand high pressures, high temperatures, and corrosive environments. They are available in various configurations (fixed tube sheet, floating head, U-tube) and materials (carbon steel, stainless steel, alloy steel, titanium) to suit diverse process requirements.

Key Features & Advantages

✅ High Heat Transfer EfficiencyOptimized baffle designs and tube arrangements maximize turbulence and contact area, ensuring excellent heat transfer performance even with high-viscosity fluids.

✅ Robust & Versatile DesignSuitable for high-pressure, high-temperature, and corrosive applications. Floating head and U-tube designs accommodate thermal expansion and simplify maintenance.

✅ Wide Material CompatibilityAvailable in carbon steel, stainless steel (304/316L), duplex steel, titanium, and other alloys, making them ideal for use with corrosive media like acids, brines, and hydrocarbons.

✅ Easy Maintenance & CleaningRemovable tube bundles and access ports simplify inspection, cleaning, and replacement, reducing downtime and operational costs.

✅ Long Service Life & ReliabilityEngineered to withstand cyclic thermal and mechanical stress, with pressure vessel certification (ASME, GB150) ensuring safe, long-term operation.

✅ Customizable ConfigurationsMultiple flow patterns (counter-flow, cross-flow), tube sizes, baffle types, and end connections to meet specific process requirements.

Working Principle

The shell and tube heat exchanger operates on the principle of conductive and convective heat transfer between two fluids:

One fluid (tube-side) flows through the interior of the tubes, while the other fluid (shell-side) flows over the outside of the tubes within the shell.

The fluids are kept physically separated by the tube walls, preventing mixing while allowing heat to transfer from the hotter fluid to the colder one.

Baffles inside the shell direct the shell-side fluid across the tube bundle in a controlled path, enhancing turbulence and improving heat transfer efficiency.

The design accommodates thermal expansion of the tubes and shell, preventing mechanical stress and ensuring structural integrity under varying temperature conditions.

Applications

• Oil & Gas Industry: Crude oil preheating, natural gas processing, and refinery cooling/heating processes

• Chemical & Petrochemical Industry: Acid-base reactions, solvent recovery, and condensation/evaporation processes

• Power Generation: Condensers, feedwater heaters, and cooling systems in thermal and nuclear power plants

• Pharmaceutical & Food Industry: Process fluid heating/cooling and sterile product manufacturing

• HVAC & Refrigeration: Chillers, condensers, and evaporators for industrial and commercial cooling systems

• Marine Industry: Engine cooling, seawater desalination, and process heating/cooling on ships

Service & Support

• Custom engineering design based on your process conditions (fluid properties, flow rates, temperature/pressure requirements)

• Strict factory inspection, hydrostatic pressure testing, and non-destructive testing (NDT) before delivery

• Professional installation guidance, commissioning support, and maintenance manuals

• Complete after-sales service, including spare parts supply and technical troubleshooting
