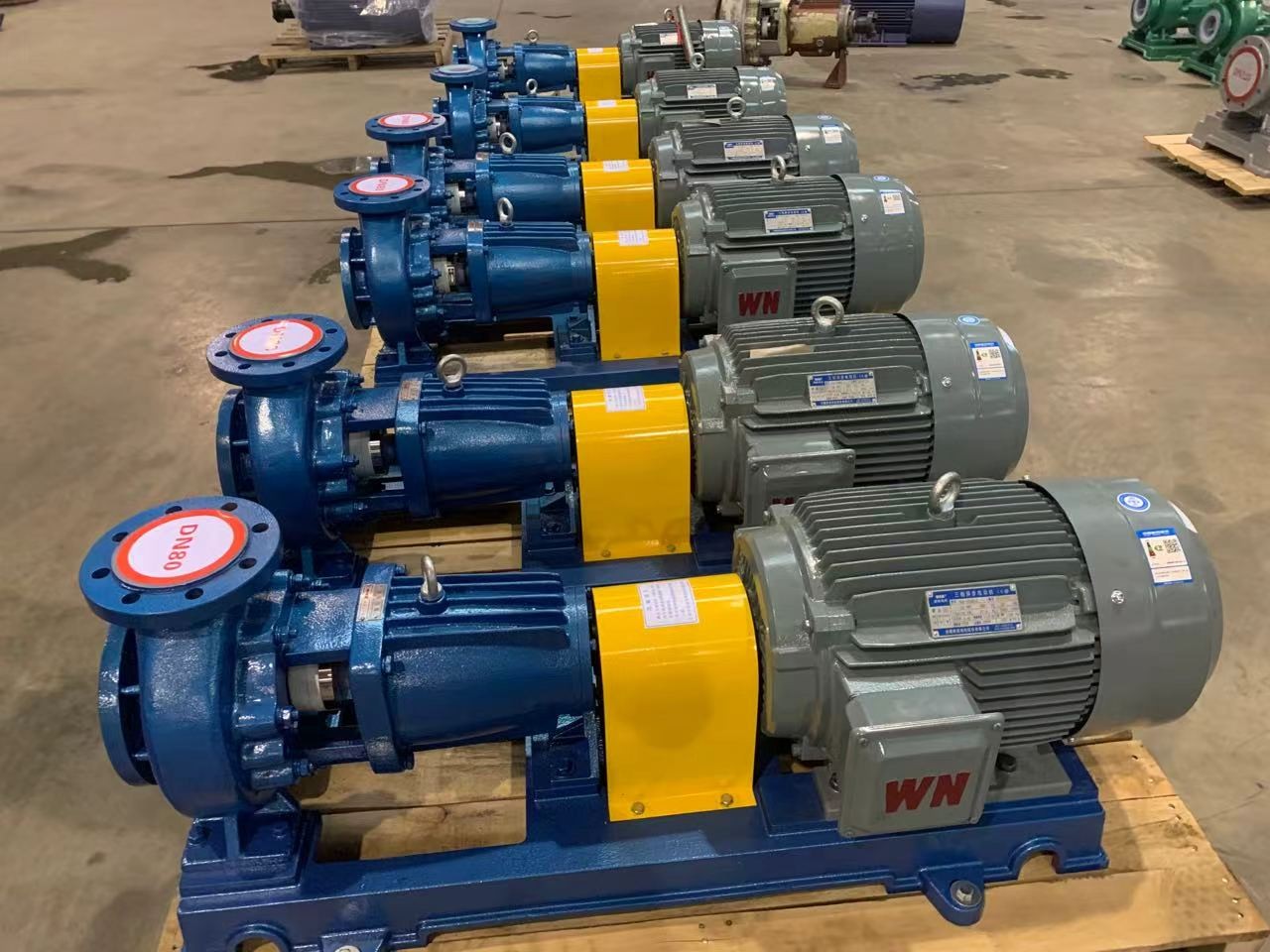

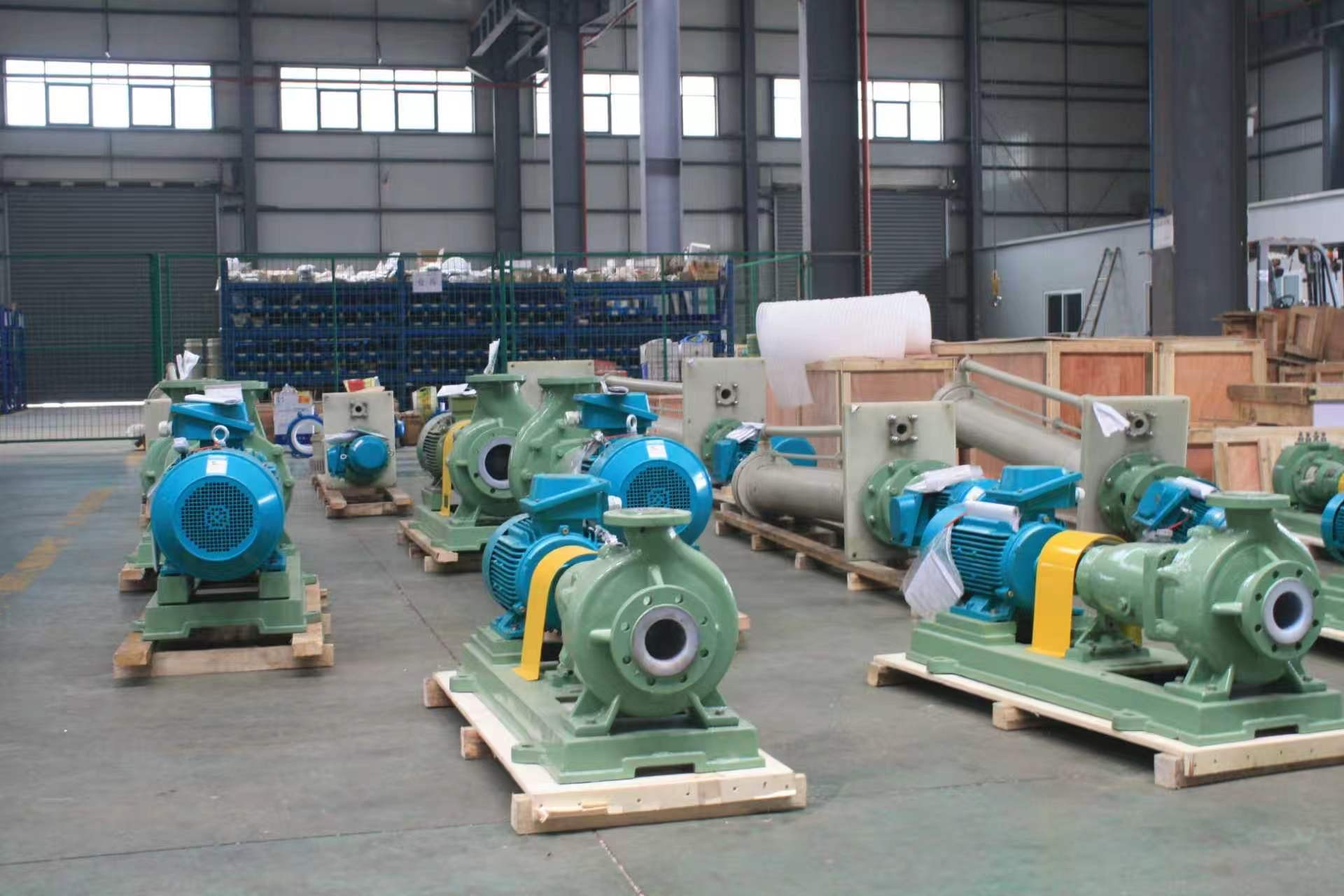

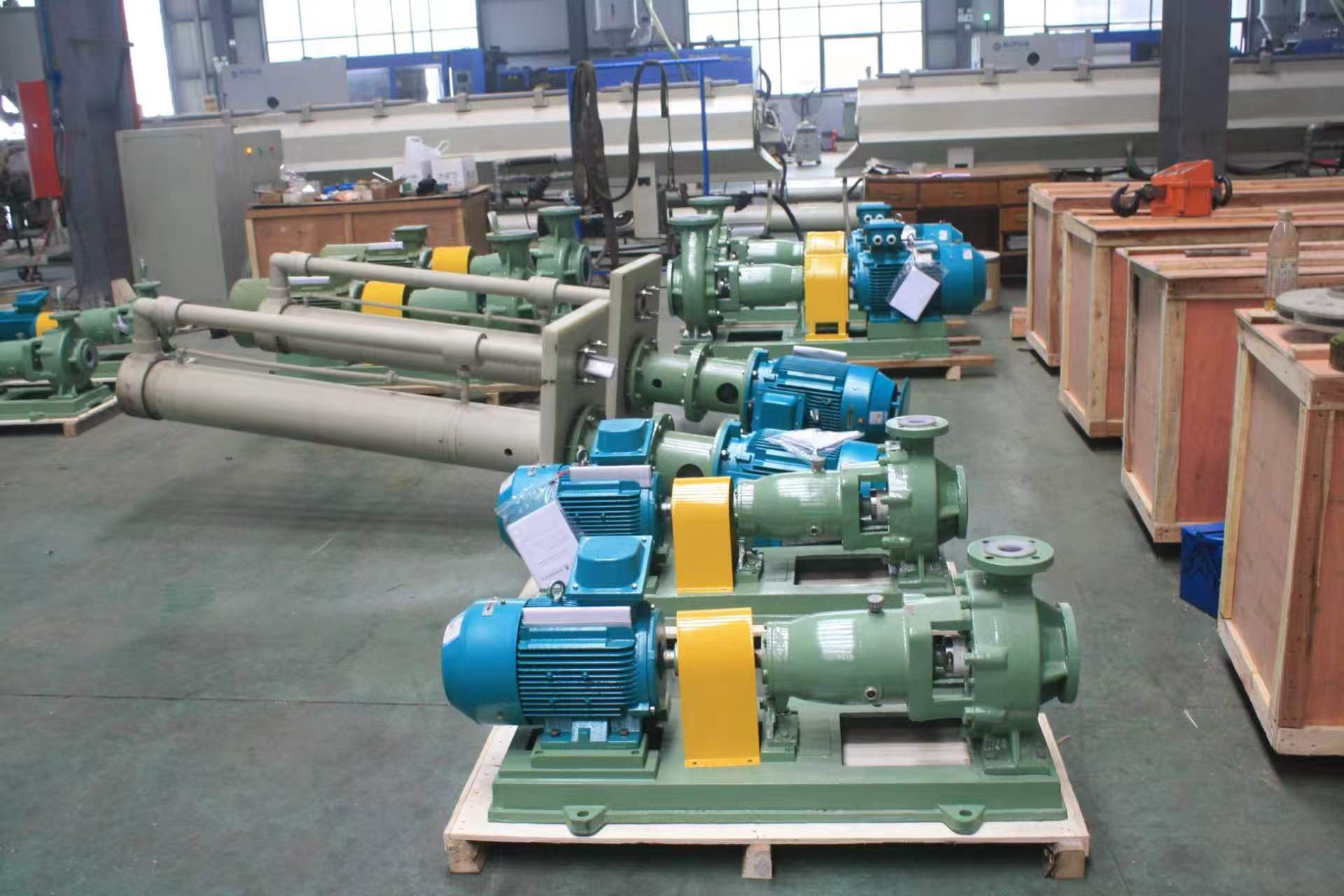

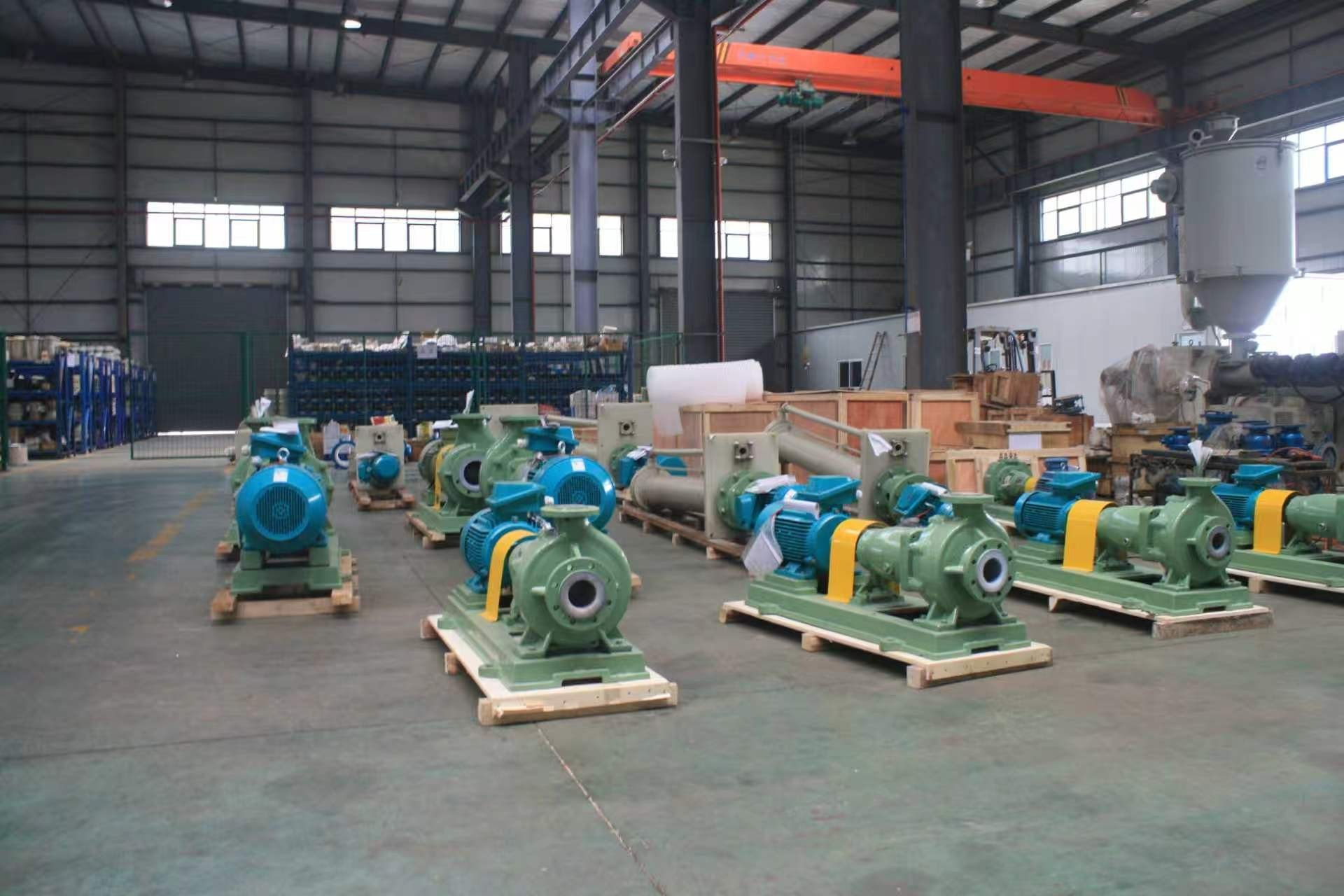

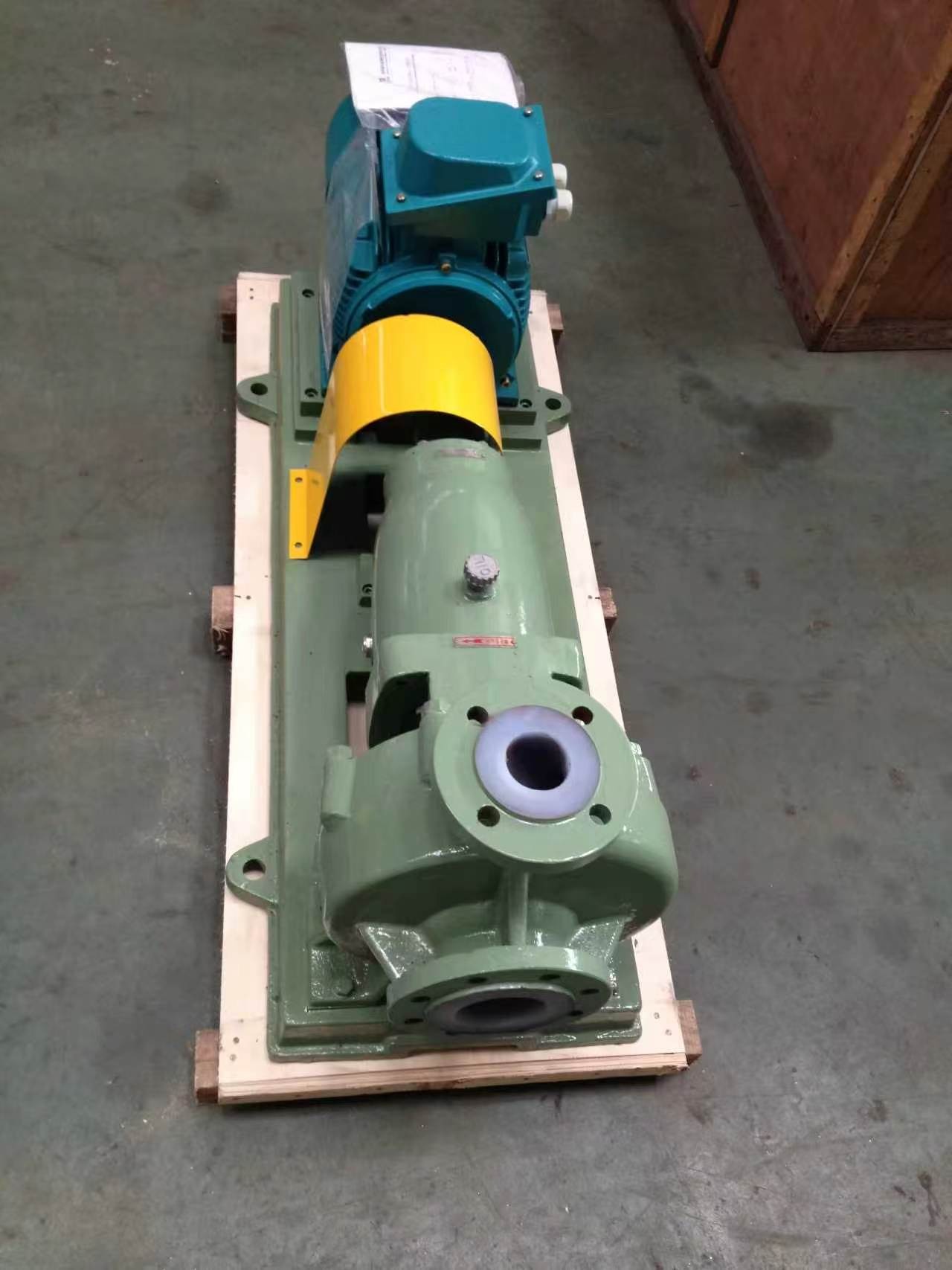

lHF Fluorine Lined Chemical Centrifugal Pump

Product Overview

IHF fluorine lined chemical centrifugal pump is a horizontal single-stage single-suction centrifugal pump manufactured in accordance with international standards. The pump body is made of cast metal shell lined with F46 (FEP) fluoroplastic. The impeller and pump cover are integrally molded with metal inserts coated by fluoroplastic alloy. Equipped with external bellows mechanical seal, it provides outstanding sealing performance for corrosive medium transportation.

This pump combines the high mechanical strength of metal and superior corrosion resistance of fluoroplastic materials. It can handle strong acids, strong alkalis, aqua regia, strong oxidants and various organic solvents, solving the transportation challenge of highly corrosive liquids in chemical processes.

Main Features

1. Excellent corrosion resistance: F46 fluoroplastic lining can resist nearly all corrosive chemical media.

2. Reliable sealing system: External bellows mechanical seal, alumina ceramic stationary ring and PTFE filled rotating ring, low leakage rate and long service life.

3. Wide working temperature range: Medium temperature from -20℃ to 120℃, customized high-temperature version available.

4. Robust structure & easy maintenance: Compact horizontal design, convenient disassembly and inspection, stable running with low vibration and noise.

5. Anti-aging property: Fluoroplastic lining is anti-aging and non-toxic, no contamination to the medium, suitable for fine chemical and pharmaceutical liquid transfer.

Technical Parameters

• Model: IHF series

• Structure: Horizontal single stage single suction centrifugal pump

• Lining material: F46(FEP), optional PFA / PTFE

• Medium temperature: -20℃ ~ 120℃ (customizable)

• Working pressure: ≤1.6MPa

• Power range: 0.55kW ~ 132kW

• Flow range: 5 ~ 200 m³/h

• Head range: 12 ~ 80 m

Note: Specific parameters can be customized according to customers' working conditions.

Application Fields

• Chemical industry: Acid & alkali transportation, chemical reactor feeding, waste liquid circulation

• Pharmaceutical industry: Raw material liquid transfer, corrosive solvent delivery

• Environmental protection & wastewater: Acid-base wastewater treatment, flue gas desulfurization

• Metallurgy & electroplating: Pickling liquid, electroplating liquid circulation

• Petrochemical, pesticide, paper-making and other corrosive process systems

Quality & Service

Our IHF fluorine lined chemical centrifugal pumps go through strict inspection before delivery. We support model selection, technical solution communication and customized production. Complete spare parts supply and after-sales technical guidance are available for global customers.
